Anti-glare, Light Control Micro Louvres.
.png/:/cr=t:18.85%25,l:0%25,w:100%25,h:62.3%25/rs=w:1209,h:605,cg:true)
LumenLouvre
LumenLouvre directs light onto objects or buildings and concentrates the light source in the intended direction, solving the problem of unwanted light trespass and reducing light spill, glare and dangerous dazzle.
It can provide either a symmetrical (LuL-0°) or an asymmetrical (LuL-17°) light 'kick' using louvres set at 0° or 17°.

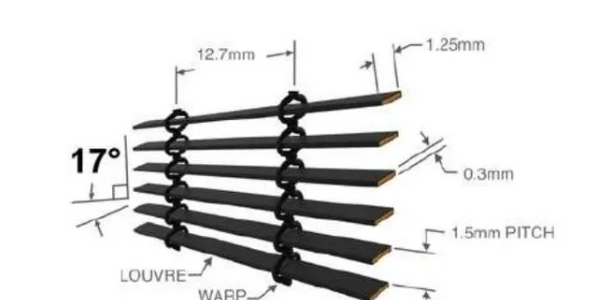

LuL-17°
LuL-17° provides an asymmetrical 17°light control alternative to maximise properties from one direction, ensuring focussed light where you need it and protection for where you don’t need it.

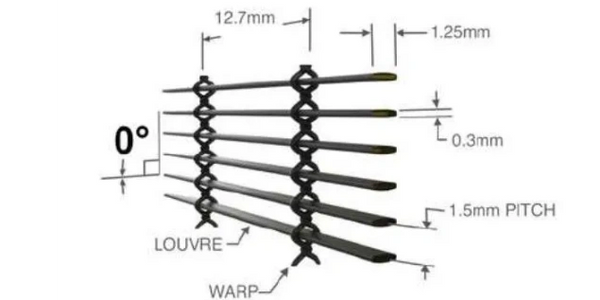

LuL-0°
Only 1.5 mm thick overall, the micro-fine (1.25 x 0.3 mm) louvres are angled at 0°, a symmetrical angle , to suit any number of applications, whether to ensure optimum light or remove glare , these lighting accessories are fire-safe & weatherproof.
LumenLouvre
Performance & Physical Characteristics
Open Area - 80%
Colour Rendering Index (CRI) - 100%
Lumen Output Differential - Black Finish 25% nom. White Finish 35% nom.
Fire Resistant - Fully A1/A2 -s1,d0 to EN 13501 compliant
Sustainable – made from 90% recycled materials and 100% recyclable at end of life
Physical Characteristics
Coating (MN204E - PPC)
Weft - (Louvre)
Width - 1.30mm +0.0/-0.1mm
Thickness - 0.35mm +0.025/-0.0mm
Louvre spacing - 1.41mm - 1.49mm
Louvre count - 17min – 18max per 25.4mm (1”)
Louvre angle - 0° (degrees) from normal plane when vertical
Warp - (Wire)
Diameter - 0.310mm (0.0122”) max
Spacing (nominal) - 12.7mm (0.5”)
Material thickness O/A - 1.55mm ±0.1mm (0.061” ±0.004”)
Weight (nominal)
per Square Metre - 1.1 kg (2.43 lb)
per Square Foot - 0.102 kg (0.23 lb)
